40×60 South Facing 3BHK Duplex (G+1) House Plan
A 4,800 sq ft south-facing G+1 duplex 40 ft along the road and 60 ft deep, with living room, dining, kitchen, pooja room, 3 bedrooms, 3 toilets and staircase. Drawn by the VARAIPADAM planner, with the pooja room, kitchen and master bedroom checked against their Vastu zones.
Customise this plan for your plotFree. Opens with these rooms: change the size, facing or any room, and get five options.
Updated 14 October 2026
- Plan size
- 40 × 60 ft
- Along the road
- 40 ft (south)
- Built-up area
- 4,800 sq ft
- Bedrooms
- 3
- Toilets
- 3
- Floors
- G+1
Room sizes
| Room | Size | Area | Zone |
|---|---|---|---|
| Staircase · ground | 6'6" × 12'6" | 81 sq ft | south-west |
| Living Room · ground | 14'0" × 12'6" | 175 sq ft | south |
| Kitchen · ground | 7'6" × 12'6" | 94 sq ft | south-east |
| Common Toilet · ground | 4'0" × 7'6" | 30 sq ft | north-west |
| Bedroom · ground | 10'6" × 11'6" | 121 sq ft | north-west |
| Pooja · ground | 4'0" × 5'6" | 22 sq ft | north |
| Dining · ground | 9'6" × 11'6" | 109 sq ft | north-east |

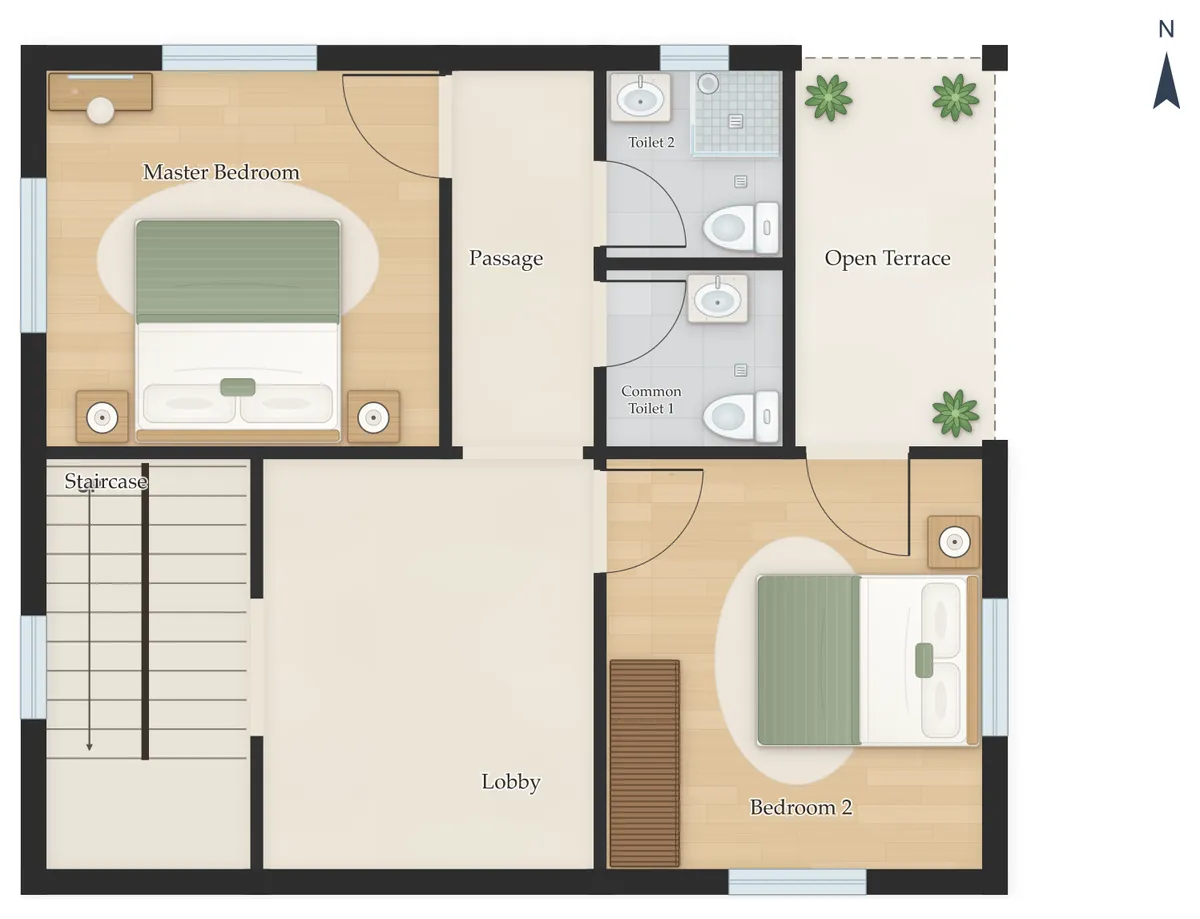

| Staircase · first | 6'6" × 12'6" | 81 sq ft | south-west |
| Bedroom 2 · first | 11'6" × 12'6" | 144 sq ft | south-east |
| Master Bedroom · first | 12'0" × 11'6" | 138 sq ft | north-west |
| Common Toilet 1 · first | 5'6" × 5'6" | 30 sq ft | east |
| Common Toilet 2 · first | 5'6" × 6'0" | 33 sq ft | north-east |
| Open Terrace · first | 6'0" × 11'6" | 69 sq ft | north-east |
Vastu check
- Pooja in the north, a traditional zone for it.
- Kitchen in the south-east, a traditional zone for it.
- Master bedroom in the north-west, not its ideal zone. Move it in the editor if Vastu matters to you.
For a south-facing plot, tradition puts the main door on the south side toward the south-east half, away from the south-west corner. South-facing plots often cost less and work well with the right entrance and shading.
Vastu for a south facing house →Questions about this plan
How many square feet is a 40×60 house?
40 × 60 ft is 2,400 sq ft (266.7 sq yards) per floor, so this G+1 duplex has about 4,800 sq ft over two floors. Leave setbacks as your local building rules require: on a plot of exactly this size, the house itself will be a little smaller.
Is this south facing plan Vastu compliant?
2 of the 3 key rooms sit in their traditional Vastu zone: pooja in the north, kitchen in the south-east, master bedroom in the north-west (not the ideal zone). You can move any room in the free editor.
Can I change this plan?
Yes. Open it in VARAIPADAM to change the plot size, facing or room list. The planner draws five new options, and you can move rooms, view the house in 3D and download PDF, DXF, IFC and 3D files.
